Description

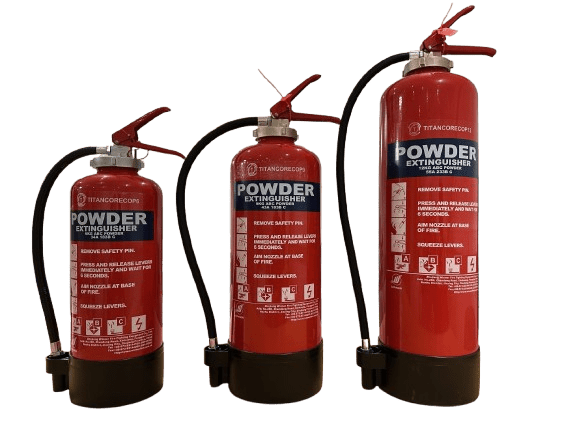

TITAN CORE 12 Kg Cartridge Operated Dry Powder Fire Extinguisher (75A 233B/C)
The TITAN CORE 12 Kg Cartridge Operated ABC Dry Powder Fire Extinguisher delivers high-capacity multi-class fire protection for Class A (solids), Class B (flammable liquids), and Class C (flammable gases) hazards. With a rating of 75A 233B/C, it’s also safe for use on live electrical equipment, making it ideal for industrial sites, warehouses, transport fleets, and oil & gas applications where fast reset and reliability are essential.
Constructed from heavy-duty steel with a corrosion-resistant coating and internal polyethylene lining, this unit includes a pressure gauge, safety relief valve, and replaceable cartridge for rapid deployment. It is fully certified to BS EN 3 Kitemark standards, UKCA & CE marked, MED compliant, and backed by a 5 year manufacturer’s warranty.
Please note: This extinguisher is supplied uncommissioned. To ensure compliance with UK fire safety regulations and optimal performance, commissioning must be completed by a qualified professional. Contact us to arrange full commissioning and installation services.
Supplied fully charged and ready for immediate use, this extinguisher includes a wall-mount bracket and protective base for installation.
Technical Specification
-
Model: TITAN CORE 12 Kg Cartridge Operated Dry Powder Fire Extinguisher
-
Fire Rating: 75A 233B/C (Classes A, B & C – including electrical)
-
Extinguishing Agent: ABC dry powder (additive free)
-
Capacity: 12 kg
-
Cylinder Material: Heavy-duty steel with corrosion-resistant coating and polyethylene lining
-
Working Pressure: Approx. 15 bar at 20 °C
-
Test Pressure: Approx. 29 bar
-
Height: Approx. 530 mm
-
Diameter: Approx. 195 mm
-
Filled Weight: Approx. 17.5 kg
-
Internal Volume: Approx. 12.5 litres
-
Operating Temperature Range: –20 °C to +60 °C
-
Actuation: Replaceable cartridge for fast discharge and reset
-
Mounting: Wall bracket and protective base included
-
Certifications: BS EN 3 Kitemark, UKCA & CE marked, MED approved
-
Warranty: 5 years
-
Maintenance: Annual servicing required in line with BS 5306 3
